Description
ESCO maximum force airbags are thin reinforced, molded inflatable jacks that can be positioned in tight or confined spaces with as little as one inch clearance.
Features
- MAXIMUM Force Air Bags.
- THIN reinforced, molded inflatable jacks.
- CAN be positioned in tight or confined spaces with as little as one-inch clearance.
- Lifting capabilities range from 7.6 Tons to over 69 Tons.
- MADE of aramid fiber consisting of five layers
- Airbags may be used for lifting in several different industries such as Material Handling, Railroad Work, Mining, Rescue, Military Agricultural, OTR Tire Changing
Specifications
- Lifting Capacity: 22 Tons
- Dimensions: 20″ x 20″ x 1″ (508mm x 508mm x 25mm)
- Height Max Inflation: 9.5″ (241mm)
- Weight: 28 lbs. (13 kg)
Kit Includes

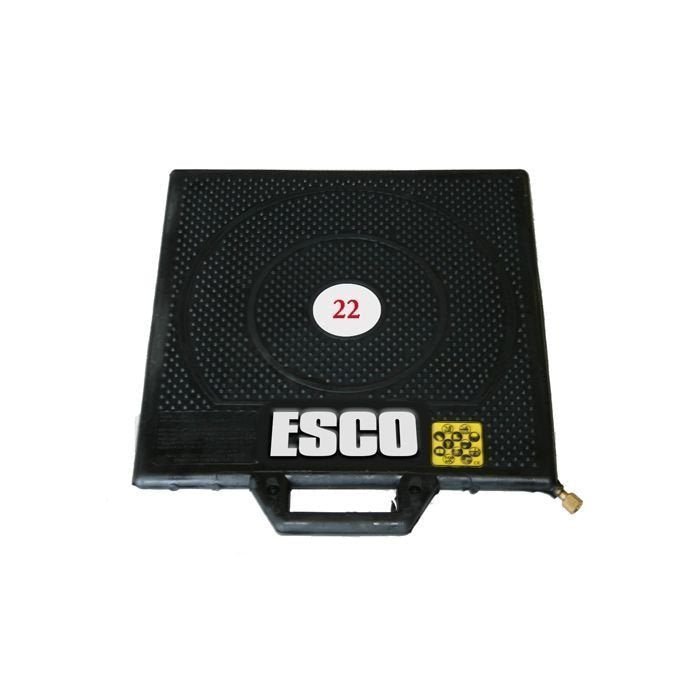

- #12107 – 22 Ton Air Bag Jack

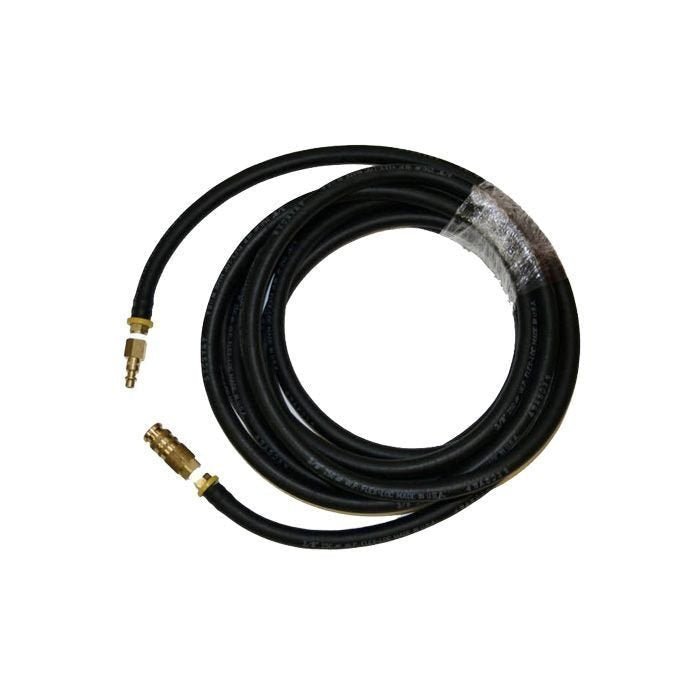

- #12122 – 20′ Air Bag Jack Hose and Couplers

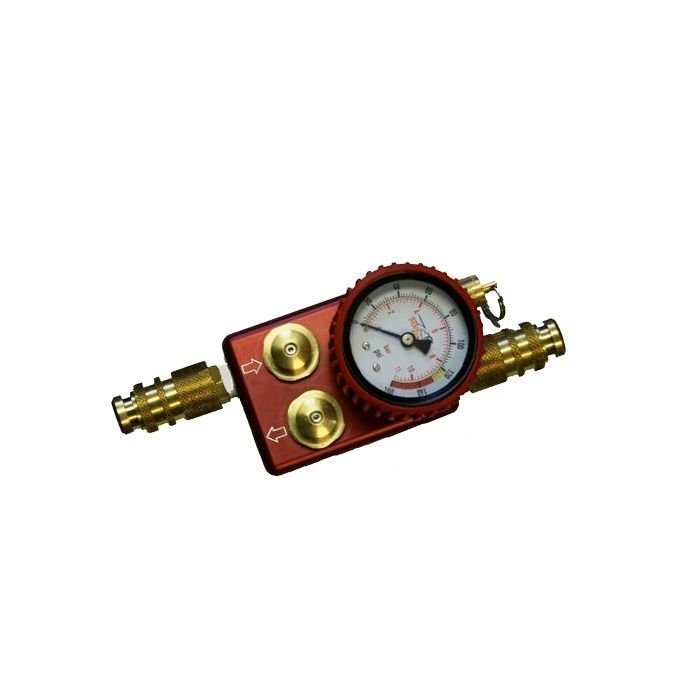

- #12119 – Single Safety Relief and Control Valve

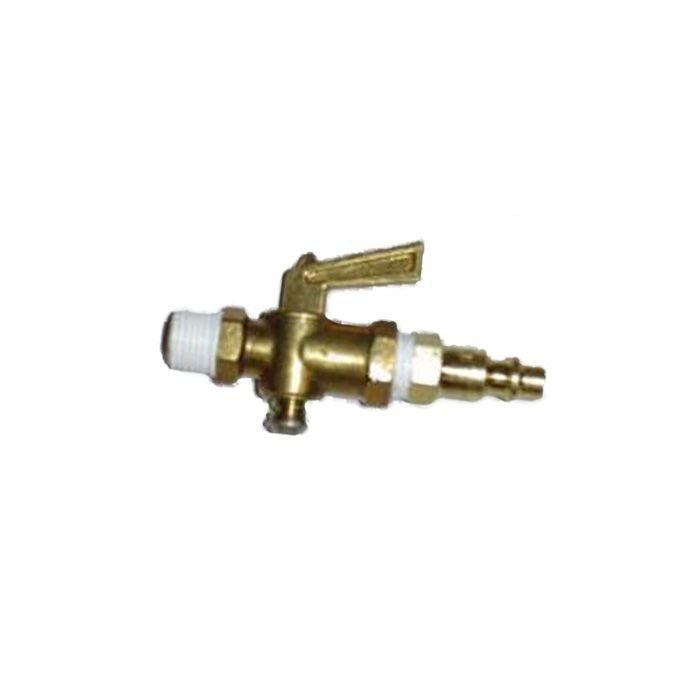

- #12123 – Nipple and Industrial Nipple with Valve
